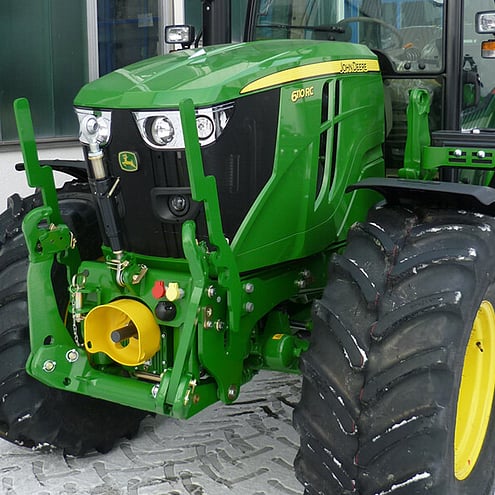

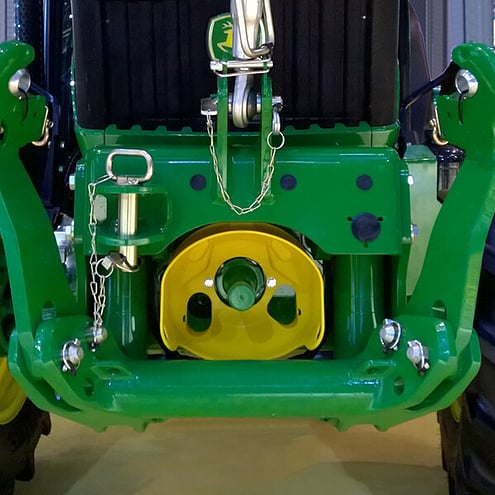

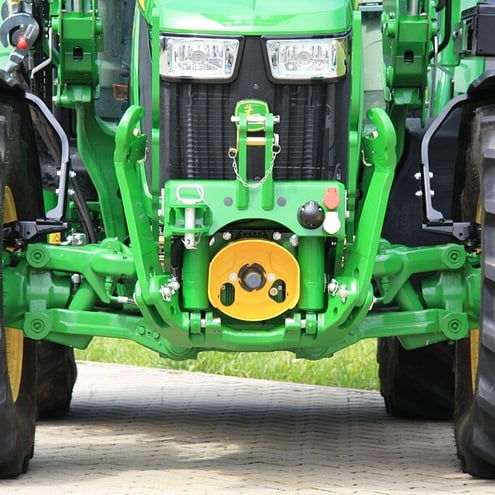

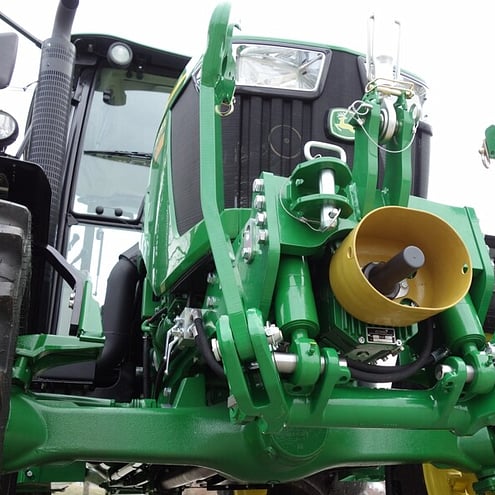

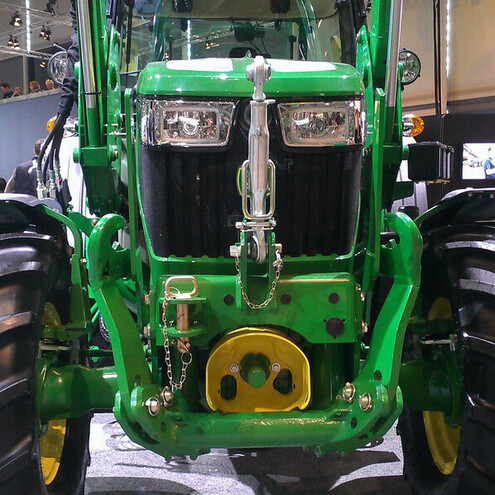

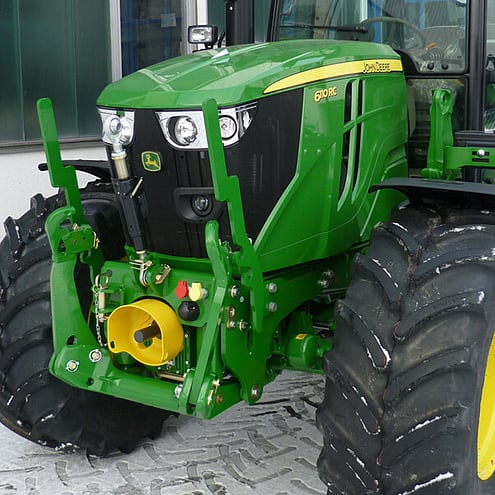

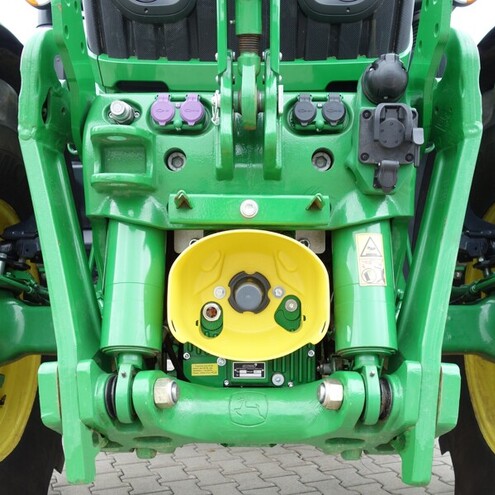

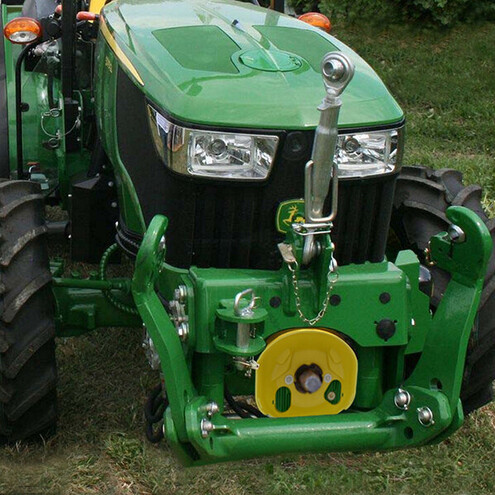

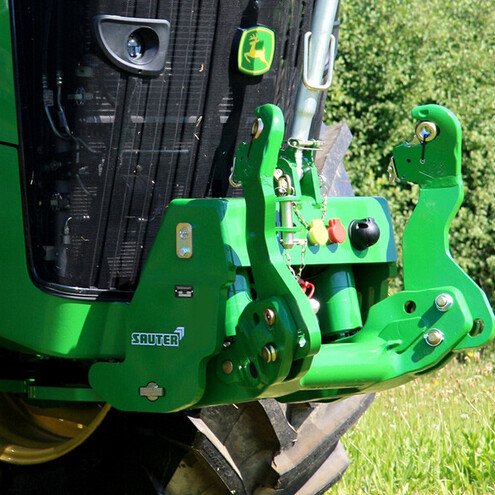

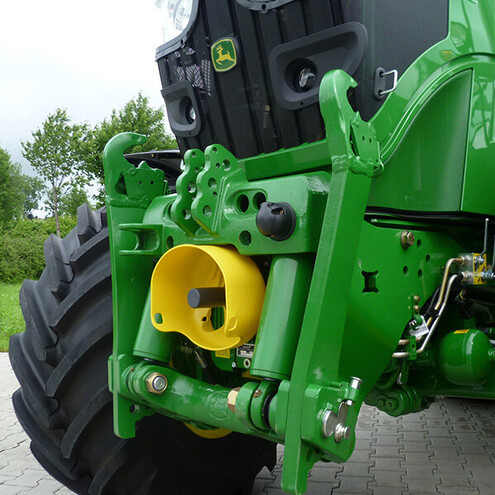

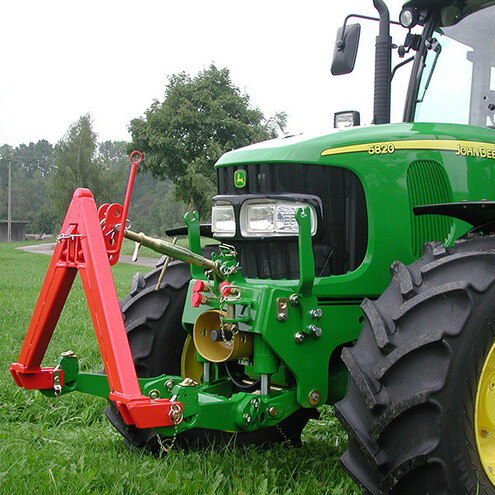

Sauter specialises in the manufacture of Front Linkage and PTO systems to fit John Deere tractors.

Perfection down to the smallest detail

5055E-5075E/5080G-5090G/5080GH-5090GH

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

2500

Double

Cat.2

PTO:

Shaft Speed RPM

Max Continuous Power

1000

50kW/68HP


5080G-5090G/5080GH-5090GH (MY14)

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

2500

Double

Cat.2

PTO:

Shaft Speed RPM

Max Continuous Power

1000

50kW/68HP


5075-5085-5100 GF/GN/GV (MY14)

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

2500

Double

Cat.2

PTO:

Shaft Speed RPM

Max Continuous Power

1000

50kW/68HP


5075GL-5085GL (MY14)

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

2500

Double

Cat.2

PTO:

Shaft Speed RPM

Max Continuous Power

1000

50kW/68HP

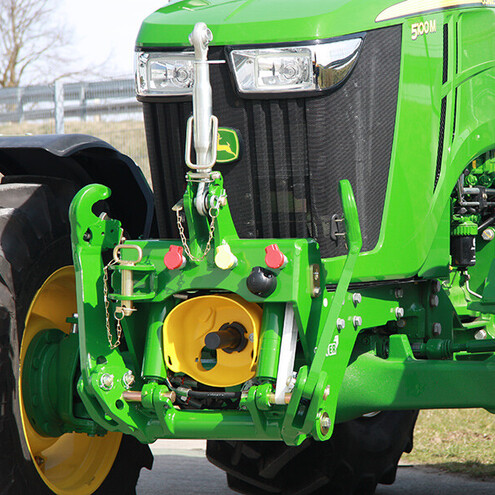

5075M-5115M (MY14)

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

2500

Double

Cat.3-2

PTO:

Shaft Speed RPM

Max Continuous Power

1000

110kW / 150HP


5090R-5125R

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

2800

Double

Cat.3-2

PTO:

Shaft Speed RPM

Max Continuous Power

1000

50kW/68HP


6090-6110RC & MC (4i)/6125R & M (4i)/6110-6130R & M (4f)

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

3500

Double

Cat.3-2

PTO:

Shaft Speed RPM

Max Continuous Power

1000

110kW / 150HP


6130-6170R & M (4i)/6190-6210R (4i)/6135-6195R & M (4f)

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

4500

Double

Cat.3-2

PTO:

Shaft Speed RPM

Max Continuous Power

PTO HZ

124mm below crankshaft

1000

110kW / 150HP

PTO TA*

186mm below crankshaft

1000

110kW / 150HP

PTO HW*

(with cooler)
246mm below crankshaft

1000

125kW / 170HP

*Recommended for wheel size 30" rims for PTO output shaft position


6215R

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

4500

Double

Cat.3-2

PTO (With Cooler):

Shaft Speed RPM

Max Continuous Power

1000

125kW / 170HP


7200R-7280R/7210R-7310R (MY14)

LINKAGE:

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

5000

Double

Cat.3-2

PTO:

Shaft Speed RPM

Max Continuous Power

1000

110kW/150HP


8225R-8345R Tier 3/8235R-8360R T4i/8270R-8370R (MY14)

LINKAGE   **NO PTO OPTION**

Lifting Power at Hooks

Double/Single Acting

Catch Hooks

With ILS

5000

Double

Cat.3-2

Without  ILS

-

-

-

Accessories

Double Acting Front Remote Kit - JD 5000 / 6000

Double Acting Front Remote Kit - JD 7000 / 8000
